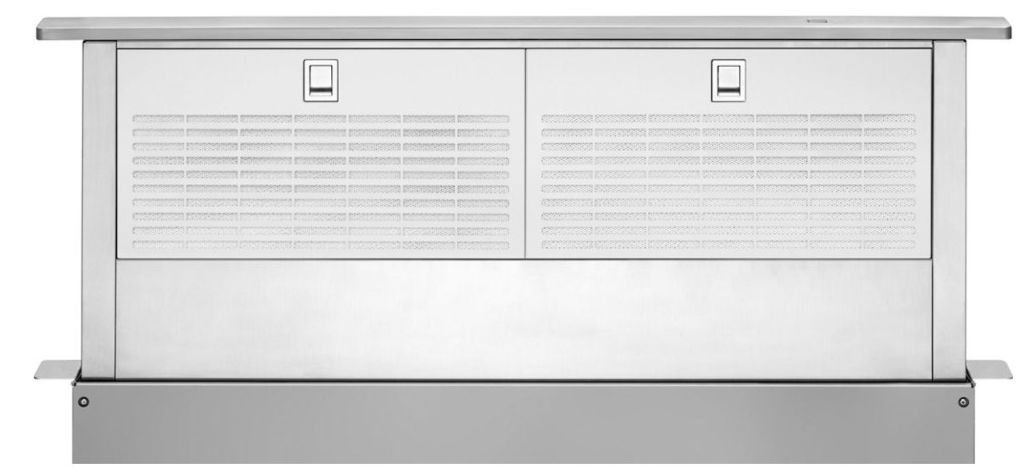

Maytag® 30" Stainless Steel Retractable Downdraft Ventilation

Maytag

Model #:

UXD8630DYS-001

Model #: UXD8630DYS-001
1719141
Maytag
$997.00
CLEARANCE

At a Glance

Product Dimensions 28.50"h x 30"w x 12.12"d

Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.Read More

Sale $997.00

$1,329.00

Save $332.00

OPEN BOX

Get to know this product.

Product Overview

Product Overview

Powerful 600 CFM interior blower motor included

6.5 vertical sones (3-1/4" x 10")

Auto off when retracted

Aluminum grease filters

Damper

Brushed aluminum intake cover standard

Slide controls

Touch-Activated Telescoping Operation

Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.

Dual Centrifugal Blower

A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.

Useful Documents
Product Manual
Installation Instructions
Warranty Guide
Specifications

General Specs

Width (in.)30
Height (in.)28.50
Duct Size (in.)6
Depth (in.)12.12
ColorStainless Steel
Manufacturer Warranty1 Year Parts & Labor
Color Finish NameStainless Steel
Range Hood TypeDowndraft
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)30
Maximum CFM600
Sones Rating6.5
Fan Speed Options3
Ventilation DirectionDowndraft
Voltage120
Amp15
Frequency60
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Construction

Exhaust:Ducted
Chimney:Fixed
Ductwork Type:Vertical

General Features

Filter Type:2 Dishwasher Safe Grease Filters
Pollutant Removal:Dishwasher-safe aluminum grease filter

Other

Settings:Infinite
Number of Air Movers:1
Sones (Noise Level) Rating:7.9
